Premium RA92 SQB6-XX Series

WALL MOUNT 30" - 36"






Product information

Models

RA9230SQB6-XX (30")
RA9236SQB6-XX (36")
RA9230SQB6-DC30-XX (30")
RA9236SQB6-DC30-XX (36")
RA9230SQB6-DC46-XX (30")
RA9236SQB6-DC30-XX (36")

Size

,

Speed

Control

Blower

QuietMode

Ductless/ Recirculating

Ducting

Filter

Light

ECO Mode

Exhaust

Ceiling (Min)

7-1/2 (with standard duct cover)

Ceiling (Max)

8-1/2 (with standard duct cover)

Duct Extension

RA0930DC-1 (for ceiling height 9 to 10 ft)
RA0946DC-1 (for ceiling height 10-1/2 to 11-1/2 ft)

Fit Ceiling Height

, , , , , , , ,

Type

Collection

Features

, , , ,

Description

KOBE Range Hoods’ RA92 Series is a hands-free fully auto range hood and compatible with all brands of gas ranges! The flame and temperature sensor automatically turns on and adjust the fan speed while cooking and turns it off after cooking. Other features include ECO Mode™ technology, delay shutoff and 3-level lighting. Our exclusive ECO Mode™ uses very little power to turn the fan on at QuietMode™ for 10 minutes every hour to refresh the air.

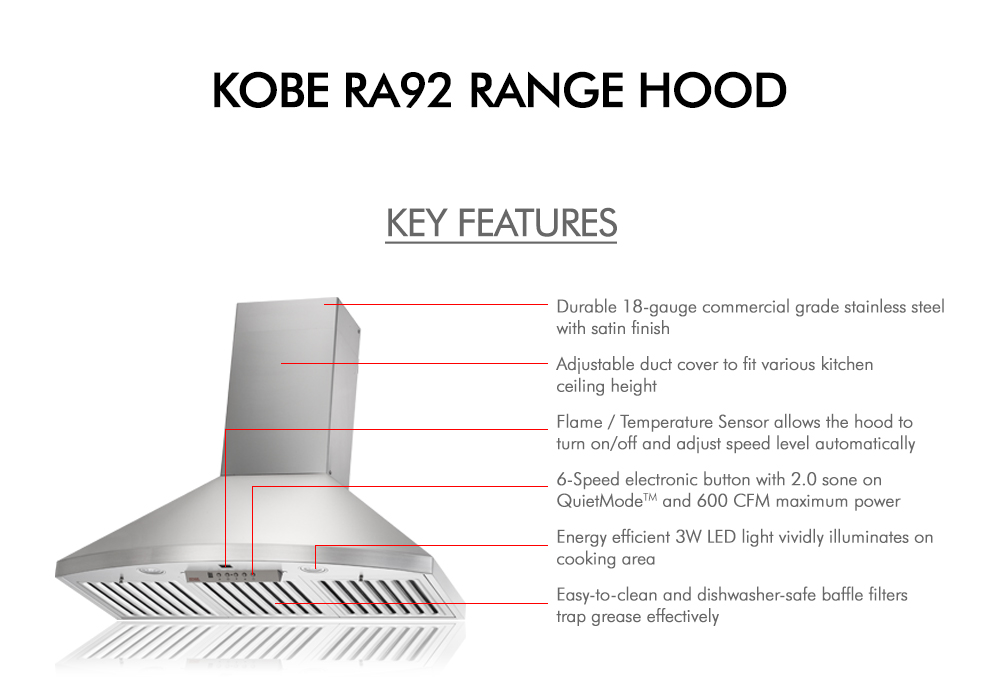

Features & Benefits

• First hands-free fully auto residential hood!
• Flame & Temperature sensor to allow hood to turn on/off and adjust fan speed automatically
• Compatible with all brands of gas ranges
• ECO Mode to promote a cleaner kitchen air quality
• Includes 3-watt LED Lights that require less energy than Halogen Lights
• Easy to clean baffle filter to catch grease efficiently
• Duct cover extension is available for taller ceiling

Available Documents

Manual PDF
Specification PDF
