Brillia CHX22 SQB-1 Series

UNDER CABINET 30" - 36"



CHX22 SQB-1 Brillia Series has been awarded the 2018 ADEX Gold Award for Design Excellence.

Buy now from our Shopify Store!




Product information

Models

CHX2230SQB-1 (30")
CHX2236SQB-1 (36")

Size

,

Speed

Control

Blower

QuietMode

Ductless/ Recirculating

Ducting

Filter

Light

ECO Mode

Collection

Type

Exhaust

, ,

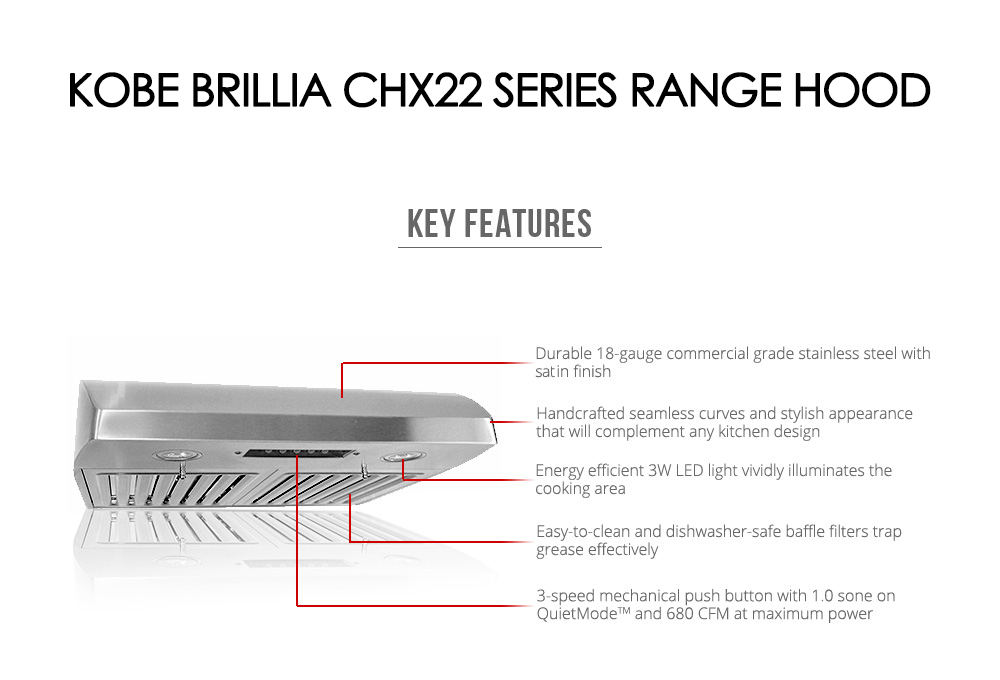

Features

Description

KOBE Brillia under cabinet range hood is equipped with 3-speed mechanical push button, dishwasher-safe baffle filters, and LED lights. It is a powerful hood with 680 CFM internal blower yet quiet at 1.0 sone on QuietMode. This range hood is handcrafted with 18-gauge commercial grade stainless steel and features a beautiful seamless design. Must purchase TVC20 for rectangular venting.

Features & Benefits

SERIES CHX22 SQB-1
QuietMode™ At 300 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).
Blower Type Twin Vertical Turbine Impeller
Speed / Control 3-Speed / Mechanical Push Button Control
CFM / Sone 300 / 1.0 / QuietMode™
510 / 3.0 / Low
680 / 5.0 / High
Exhaust Top 6″ Round
Top 3-1/4″ x 10″ Rectangular (Optional with TVC20)
Rear 3-1/4″ x 10″ Rectangular (Optional with TVC20)
Light The hood is equipped with 3W LED lights (3W)
Filters Dishwasher safe professional baffle filters allow for easy cleaning.
Attractive Appearance The seamless curves and stylish appearance of the hood will compliment any kitchen.
Easy to Clean KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
Quality Parts are checked for defects and designed for trouble free long term use.
Sizes 30″ and 36″
Easy to Install Our special design makes installation fast and easy.
Color Commercial Grade Stainless Steel
Versatile Installation This versatile hood can be used for under cabinet or for wall mount style with the optional duct cover.
Optional Accessories TVC20 (Top Vent Cover ) – for Top and Rear Rectangular Exhaust
Stainless Steel Back Splash:
30″ Stainless Steel Back Splash – Model No. SSP30
36″ Stainless Steel Back Splash – Model No. SSP36
