Deluxe IN26 SQB-650-5A

BUILT IN / INSERT 30" - 36"

700 CFM

Product information

Models

IN2630SQB-650-5A (30")
IN2636SQB-650-5A (36")

Size

,

Speed

Control

Max CFM

QuietMode

Ductless/ Recirculating

Ducting

Filter

Light

ECO Mode

Collection

Features

, , ,

Type

Exhaust

, , ,

Description

KOBE Deluxe built-in/ insert range hood seamlessly fits with custom cabinetry without the need for a liner. High performance with 700 CFM internal blower and operates very quietly. This hood offers stainless steel baffle filters, versatile multi-exhaust options for both top and rear venting, LED lights, electronic button control and ECO Mode function. The ECO Mode allows the hood to turn on automatically for 10 minutes every hour to remove unwanted air particles without having to manually turn it on and off. Wireless Remote Control is sold separately.

Features & Benefits

SERIES IN26 SQB-650-5A Series
QuietMode™ At 300 CFM, this unique feature allows the KOBE range hood to operate at a reduced sound level of 40 decibels (1.0 sone).
Blower Type Single Horizontal Squirrel Cage
Speed / Control 6-Speed / Electronic Button Control / Delay Shutoff – 3 Minutes
CFM / Sone 300 / 1.0 / QuietMode™
360 / 2.0 / Speed 1
430 / 3.5 / Speed 2
500 / 5.0 / Speed 3
590 / 5.4 / Speed 4
700 / 6.0 / Speed 5
Exhaust Top 6″ Round
Top 3-1/4″ x 10″ Rectangular
Rear 6″ Round
Rear 3-1/4″ x 10″ Rectangular
Light The hood is equipped with 3W LED lights.
Filters Dishwasher safe professional baffle filters allow for easy cleaning.

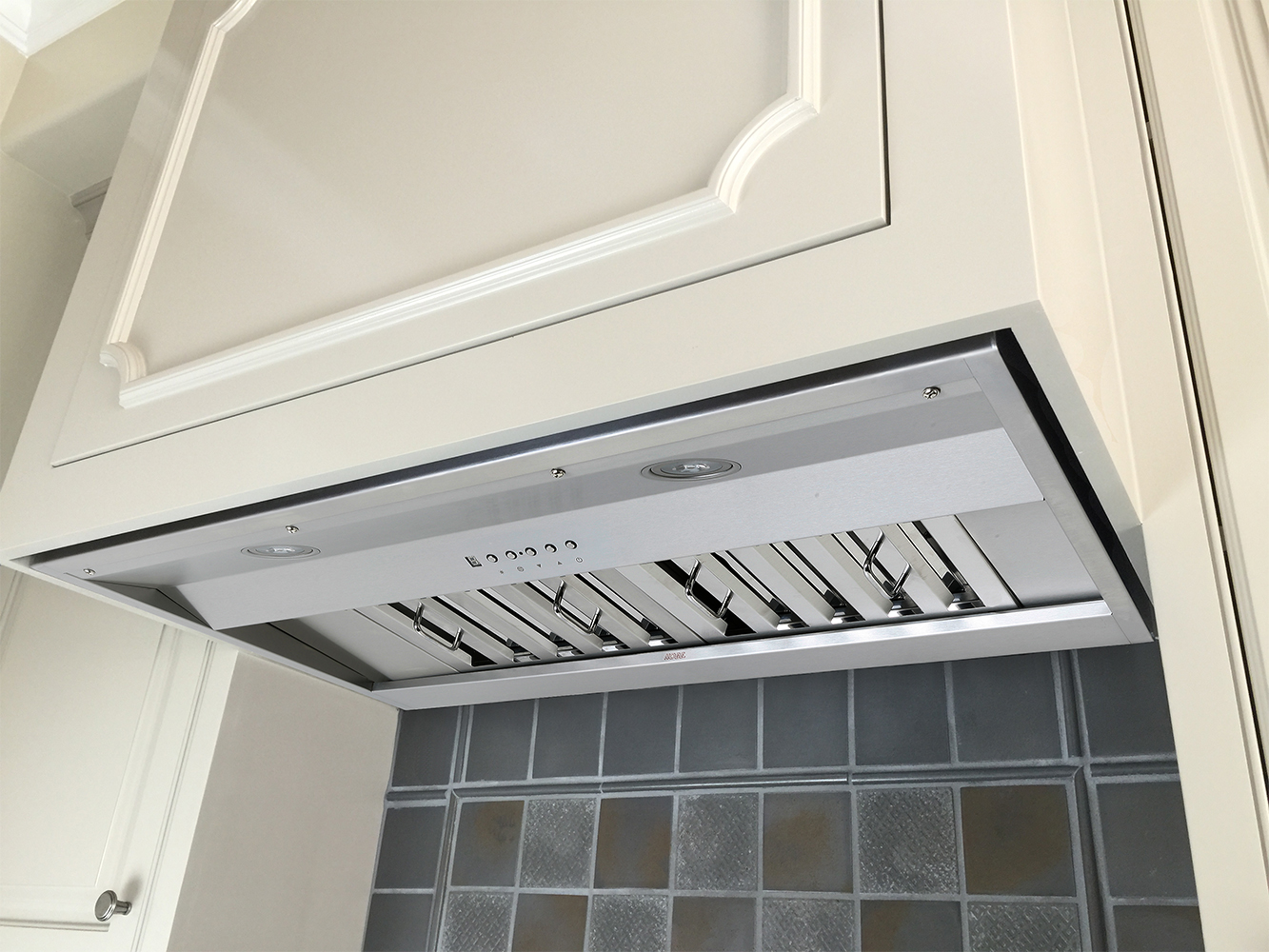

Attractive Appearance This powerful built-in range hood is designed to seamlessly fit with custom cabinetry without the use of a liner.
Time Delay Control The Time Delay System features a 3-minute delay shutoff.
ECO Mode ECO Mode runs the fan on the QuietMode™ setting for 10 minutes every hour to remove excess moisture, microscopic particles and odors to promote a cleaner kitchen air quality.
Easy to Clean KOBE’s unique design, which includes easy to empty catch areas and smooth hood surface, lets you clean the fans without disassembling the hood.
Quality Parts are checked for defects and designed for trouble free long term use.
Sizes 30″ and 36″
Easy to Install Our special design makes installation fast and easy.
Color Commercial Grade Stainless Steel
Optional Accessories Wireless Remote Control (Sold Separately)
Stainless Steek Back Splash:
30″ Stainless Steel Back Splash – Model No.: SSP30
36″ Stainless Steel Back Splash – Model No.: SSP36

Available Documents

Specification PDF
Part List PDF
